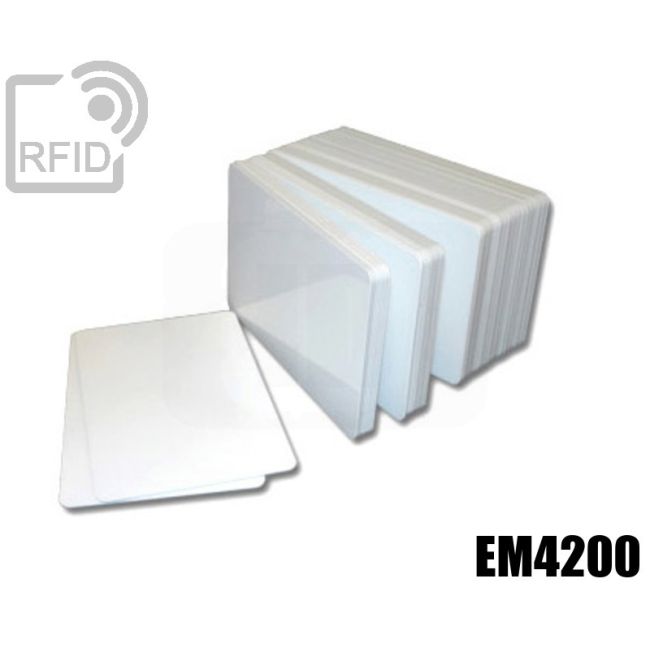

White RFID card EM4200

SKU

CR01C02

White RFID cards. Neutral proximity identification cards and badges (contactless radio-frequency smart-card). ISO 7810 laminated plastic cards in PVC or PET. EM4200 RFID chip read only LF 125 KHz.

200 pz to € 0.476 each 10% discount
500 pz to € 0.437 each 17% discount
1000 pz to € 0.414 each 22% discount
2000 pz to € 0.369 each 30% discount
3000 pz to € 0.352 each 33% discount

Details

ISO 7810 ID-1 standard size white PVC laminated neutral cards with dimensions of 85.60 53.98 mm (3.370 2.125 in) and rounded corners with a radius of 2.88-3.48 mm. Originally used for bank cards today it is also used in many countries for driving licenses and identity cards and in many commercial sectors for loyalty cards, identification and business cards. EM4200 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Personal identification
- Fidelity card / Loyalty cards
- Gift cards
- Electronic money
- Holiday parks
- Camping / Campsites
- Access control
- Attendance
- Holtel and hotel doors
- Energy saving switches

More Information

More Information
Chip RFID	EM4200
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	PVC
Dimension	85,60 × 54 × 0,9 mm
Weight	6,9 g
Chip functions	EM4200 is a CMOS integrated circuit used to construct read-only RF transponders. It was designed to directly replace all the previous Read Only chips EM4100/4102 and EM4005/4105 produced by EM Microelectronic-Marin. Compared to EM4100/4102 and EM4005/4105, the chip provides higher read range performance and features a 250pF resonant capacitor on the antenna terminals (selectable through configuration options). The unique 128-bit code is laser-programmed into ROM during manufacturing. During reading, it is possible to choose whether to use the factory-programmed unique code from ROM with 64, 96, or 128 bits. The circuit is powered by the same electromagnetic field used for data transmission. Through modulation on the 125 KHz carrier frequency, the chip will transmit the factory-programmed unique code present in ROM.
