CR03C02 48H printing RFID cards EM4200 swatch

Skip to the beginning of the images gallery

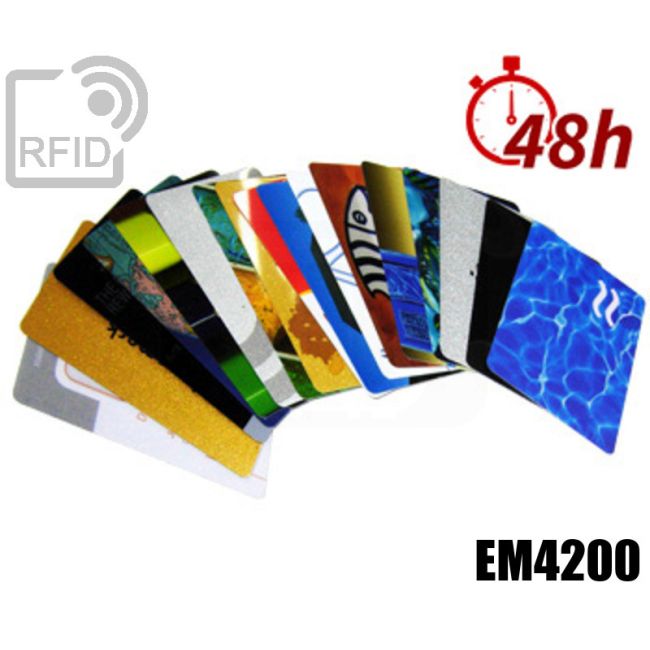

48H printing RFID cards EM4200

SKU

CR03C02

Custom RFID cards. Badge and proximity identification cards with fast printing. Urgent service of fast color printing in retransfer and thermography with numbering and barcodes. ISO 7810 laminated plastic cards in PVC or PET. EM4200 RFID chip read only LF 125 KHz.

Customization instructions

100 pz to € 0.933 each 7% discount
150 pz to € 0.847 each 15% discount
200 pz to € 0.783 each 22% discount

Details

RFID cards printed and shipped in just 48 hours from the confirmation of the draft. Color retransfer printing with custom design on PVC ISO 7810 ID-1 standard size with size of 85.60 53.98 mm (3.370 2.125 in) and rounded corners with radius of 2.88-3.48 mm. Originally used for bank cards today it is also used in many countries for driving licenses and identity cards and in many commercial sectors for loyalty cards, identification and business cards. EM4200 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Personal identification
- Fidelity card / Loyalty cards
- Gift cards
- Electronic money
- Holiday parks
- Camping / Campsites
- Access control
- Attendance
- Holtel and hotel doors
- Energy saving switches

More Information

More Information
Chip RFID	EM4200
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	PVC
Dimension	85,60 × 54 × 0,9 mm
Weight	6,9 g
Chip functions	EM4200 is a CMOS integrated circuit used to construct read-only RF transponders. It was designed to directly replace all the previous Read Only chips EM4100/4102 and EM4005/4105 produced by EM Microelectronic-Marin. Compared to EM4100/4102 and EM4005/4105, the chip provides higher read range performance and features a 250pF resonant capacitor on the antenna terminals (selectable through configuration options). The unique 128-bit code is laser-programmed into ROM during manufacturing. During reading, it is possible to choose whether to use the factory-programmed unique code from ROM with 64, 96, or 128 bits. The circuit is powered by the same electromagnetic field used for data transmission. Through modulation on the 125 KHz carrier frequency, the chip will transmit the factory-programmed unique code present in ROM.
