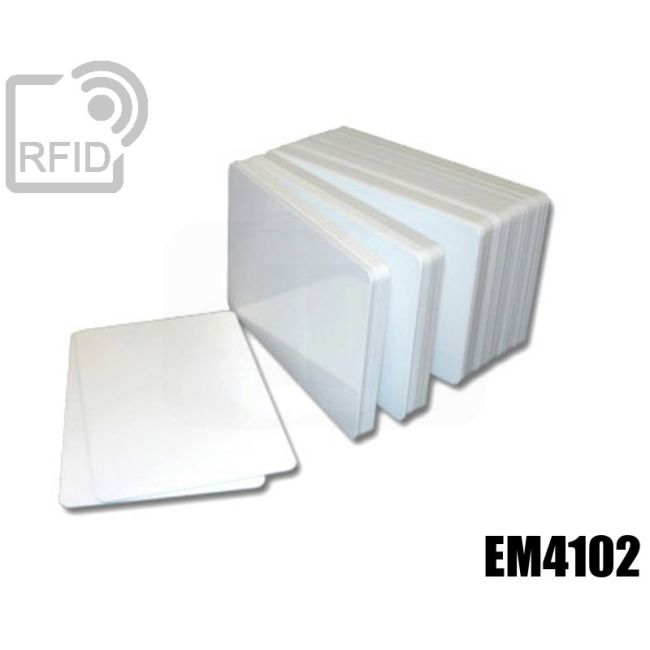

White RFID card EM4102

SKU

CR01C17

White RFID cards. Neutral proximity identification cards and badges (contactless radio-frequency smart-card). ISO 7810 laminated plastic cards in PVC or PET. EM4102 RFID chip read only LF 125 KHz.

200 pz to € 0.476 each 10% discount
500 pz to € 0.437 each 17% discount
1000 pz to € 0.414 each 22% discount
2000 pz to € 0.369 each 30% discount
3000 pz to € 0.352 each 33% discount

Details

ISO 7810 ID-1 standard size white PVC laminated neutral cards with dimensions of 85.60 53.98 mm (3.370 2.125 in) and rounded corners with a radius of 2.88-3.48 mm. Originally used for bank cards today it is also used in many countries for driving licenses and identity cards and in many commercial sectors for loyalty cards, identification and business cards. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Personal identification
- Fidelity card / Loyalty cards
- Gift cards
- Electronic money
- Holiday parks
- Camping / Campsites
- Access control
- Attendance
- Holtel and hotel doors
- Energy saving switches

More Information

More Information
Chip RFID	EM4102
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	PVC
Dimension	85,60 × 54 × 0,9 mm
Weight	6,9 g
Chip functions	EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated.
