RFID tag tubes Mifare Classic ® 1K Ev1
SKU
TR08C08

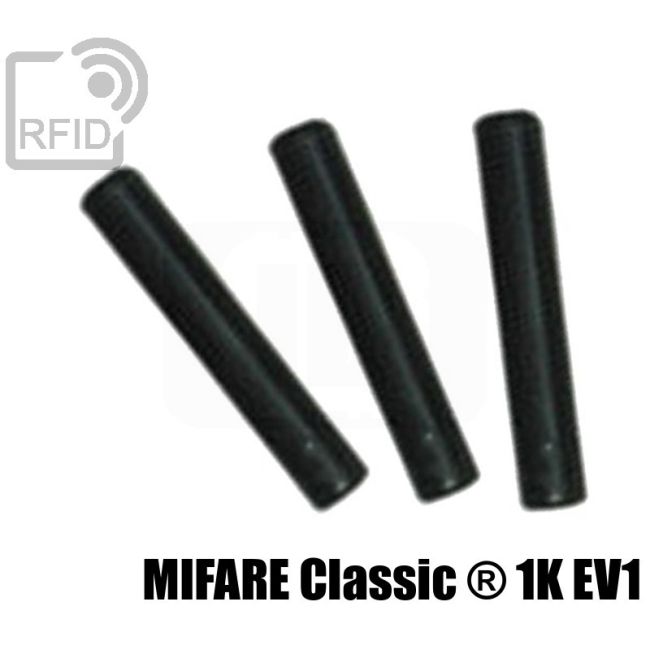

Nylon RFID tag tube Mifare Classic ® 1K Ev1 RFID chip S50 read and write HF 13,56 MHz ISO 14443A.
- 500 pz to € 1.713 each 10% discount
- 1000 pz to € 1.541 each 19% discount
- 2000 pz to € 1.392 each 27% discount
The RFID tag tube is made of nylon and can be inserted into any hole on wood, plastic and masonry.
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. Mifare Classic ® 1K Ev1 RFID chip S50 read and write HF 13,56 MHz ISO 14443A memory 1K Bytes / 16 Settori x 4 blocchi x 16 Bytes / 4 Bytes tag ID original NXP.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. Mifare Classic ® 1K Ev1 RFID chip S50 read and write HF 13,56 MHz ISO 14443A memory 1K Bytes / 16 Settori x 4 blocchi x 16 Bytes / 4 Bytes tag ID original NXP.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
| Chip RFID | MIFARE Classic ® 1K EV1 |
|---|---|
| Chip Frequency | HF 13,56 MHz |
| Standard protocol | ISO 14443A |
| Compatibility NFC | Type MIFARE Tag |
| Chip Manufacturer | NXP |
| Material | Resin |
| Dimension | Diameter 4-4,5 x 15,5-25 mm |
| Weight | 2 g |
| Chip functions | NXP Semiconductors has developed the MIFARE Classic EV1 contactless IC to be used in a contactless smart card according to ISO/IEC 14443 Type A. The target applications include single trip or limited use tickets in public transportation networks. The MIFARE Classic with 1kBit memory, organized in 64 block of 16 bytes each |
