RFID tag tubes FM11RF08
SKU
TR08C07

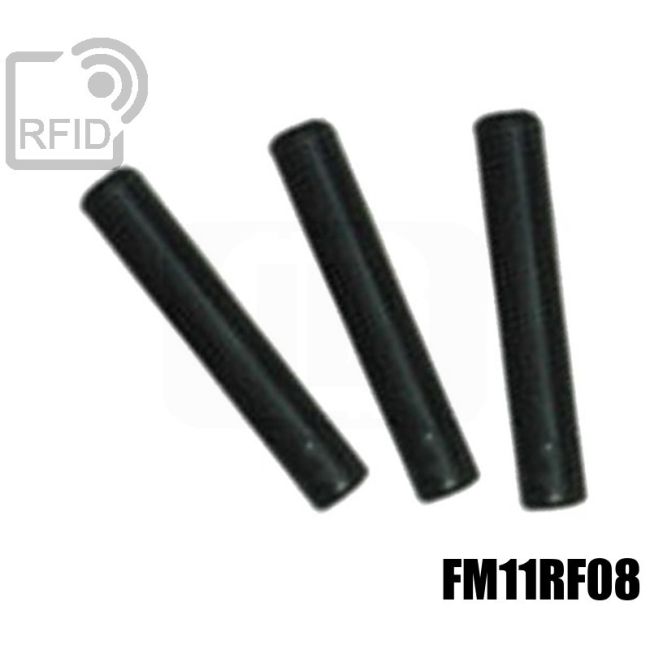

Nylon RFID tag tube FM11RF08 RFID NFC chip read and write HF 13,56 MHz ISO 14443A.
- 500 pz to € 1.484 each 3% discount
- 1000 pz to € 1.335 each 13% discount
- 2000 pz to € 1.206 each 21% discount
The RFID tag tube is made of nylon and can be inserted into any hole on wood, plastic and masonry.
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. FM11RF08 RFID NFC chip read and write HF 13,56 MHz ISO 14443A memory 1K Bytes / 16 Settori x 4 blocchi x 16 Bytes / 4 Bytes tag ID original Fudan.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. FM11RF08 RFID NFC chip read and write HF 13,56 MHz ISO 14443A memory 1K Bytes / 16 Settori x 4 blocchi x 16 Bytes / 4 Bytes tag ID original Fudan.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
| Chip RFID | FM11RF08 |
|---|---|
| Chip Frequency | HF 13,56 MHz |
| Standard protocol | ISO 14443A |
| Compatibility NFC | Type MIFARE Tag |
| Chip Manufacturer | Fudan |
| Material | Resin |
| Dimension | Diameter 4-4,5 x 15,5-25 mm |
| Weight | 2 g |
| Chip functions | FM11RF08 is the contactless card IC according to ISO14443 Type A. The Contactless smart card contains three components: FM11RF08 chip antenna and the card base with PVC (or PET) material. The high speed RF communication interface allows transmitting data with 106 Kbit/s |
