RFID tag tubes EM4200
SKU
TR08C02

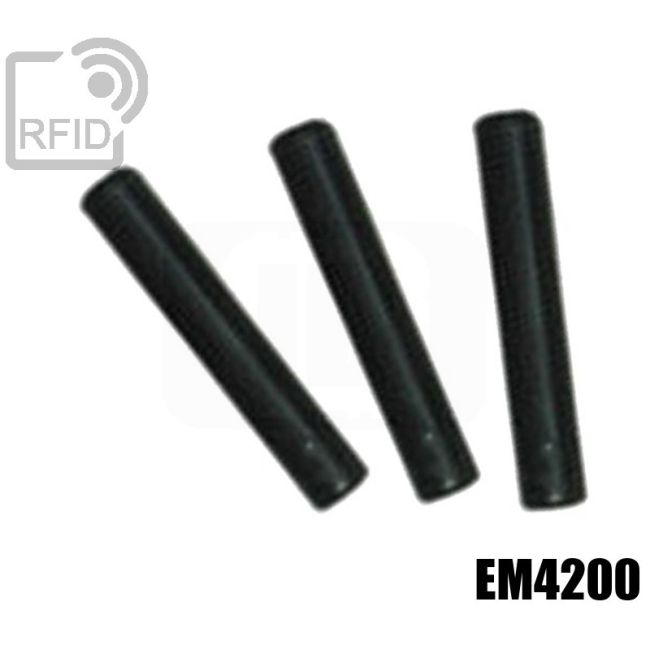

Nylon RFID tag tube EM4200 RFID chip read only LF 125 KHz.
- 500 pz to € 1.637 each 3% discount
- 1000 pz to € 1.473 each 13% discount
- 2000 pz to € 1.330 each 21% discount
The RFID tag tube is made of nylon and can be inserted into any hole on wood, plastic and masonry.
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. EM4200 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. EM4200 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
| Chip RFID | EM4200 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | Resin |
| Dimension | Diameter 4-4,5 x 15,5-25 mm |
| Weight | 2 g |
| Chip functions | EM4200 is a CMOS integrated circuit used to construct read-only RF transponders. It was designed to directly replace all the previous Read Only chips EM4100/4102 and EM4005/4105 produced by EM Microelectronic-Marin. Compared to EM4100/4102 and EM4005/4105, the chip provides higher read range performance and features a 250pF resonant capacitor on the antenna terminals (selectable through configuration options). The unique 128-bit code is laser-programmed into ROM during manufacturing. During reading, it is possible to choose whether to use the factory-programmed unique code from ROM with 64, 96, or 128 bits. The circuit is powered by the same electromagnetic field used for data transmission. Through modulation on the 125 KHz carrier frequency, the chip will transmit the factory-programmed unique code present in ROM. |
