BR20C01 RFID silicone wristbands strap TK4100 swatch

Skip to the beginning of the images gallery

RFID silicone wristbands strap TK4100

SKU

BR20C01

Add to Wish List Add to Compare

Silicone RFID wristband TK4100 RFID chip read only LF 125 KHz.

Customization instructions

500 pz to € 0.607 each 8% discount
1000 pz to € 0.537 each 19% discount
2000 pz to € 0.475 each 28% discount

Details

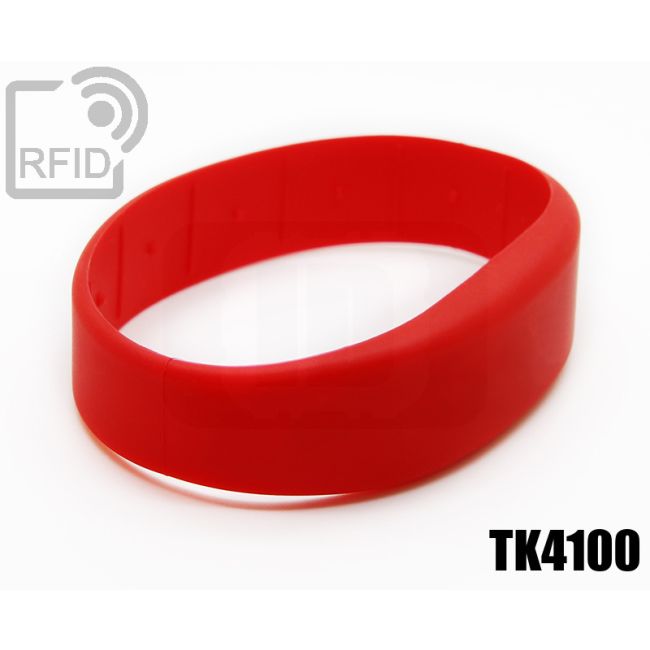

Hypoallergenic and completely waterproof IP68 silicone wristband. Available in different diameter sizes and many colors also pantone and customizable by screen printing and engraving. Particularly suitable for environments where the body is in contact with water such as marine environments, swimming pools, water parks and spas. TK4100 RFID chip read only LF 125 KHz memory 64 bit.

APPLICATIONS
- Personal identification
- Electronic money
- Holiday parks
- Campsites
- Access control
- Vending
- Events and fairs
- Sporting events

More Information

More Information
Chip RFID	TK4100
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	Various
Material	Silicone
Dimension	D.65 mm + band 17 mm
Weight	13 g
Chip functions	TK4100 is powered by an external coil in an alternating magnetic field and obtains the clock through one of the two contacts. The other contact of the coil turns the modulation current on and off; the chip sends 64 bits of information from its pre-programmed memory during manufacturing. In the TK4100 chip, data is modulated and transmitted with Manchester-encoded formatting. Chip programming is done with fusion lasers on polysilicon to store a unique code on each chip. The continuous output data string contains 9 leading 1 values, 40 bits, 14 parity bits, and 1 stop bit. No buffer capacitor is required because the control logic has very low power consumption. Only one external coil is needed to operate the chip. The parallel resonance capacitor of 74 pF is integrated into the chip.
