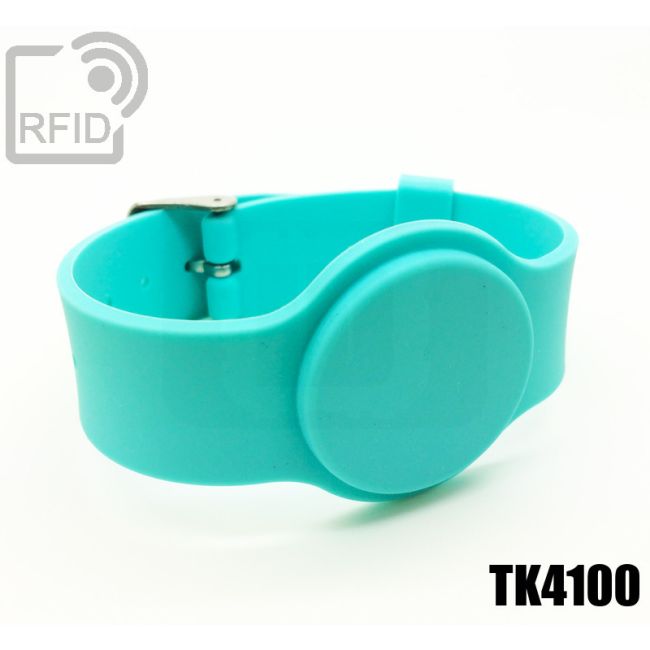

RFID silicone buckle wristbands TK4100

SKU

BR10C01

RFID wristband with circular dial with silicone body and adjustable diameter through plastic or metal pin TK4100 RFID chip read only LF 125 KHz.

Customization instructions

200 pz to € 1.063 each 6% discount
500 pz to € 0.975 each 13% discount
1000 pz to € 0.863 each 23% discount
2000 pz to € 0.763 each 32% discount

Details

Silicone wristband and fully waterproof IP68. Diameter adjustable by metal or plastic buckle. Available in several colours and customizable by screen printing and engraving. Particularly suitable for environments where the body is in contact with water such as swimming pools, water parks, wellness centers and spas. TK4100 RFID chip read only LF 125 KHz memory 64 bit.

APPLICATIONS
- Personal identification
- Electronic money
- Holiday parks
- Campsites
- Access control
- Vending
- Events and fairs
- Sporting events

More Information

More Information
Chip RFID	TK4100
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	Various
Material	Silicone
Dimension	250 x 34 x 5 mm
Weight	21 g
Chip functions	TK4100 is powered by an external coil in an alternating magnetic field and obtains the clock through one of the two contacts. The other contact of the coil turns the modulation current on and off; the chip sends 64 bits of information from its pre-programmed memory during manufacturing. In the TK4100 chip, data is modulated and transmitted with Manchester-encoded formatting. Chip programming is done with fusion lasers on polysilicon to store a unique code on each chip. The continuous output data string contains 9 leading 1 values, 40 bits, 14 parity bits, and 1 stop bit. No buffer capacitor is required because the control logic has very low power consumption. Only one external coil is needed to operate the chip. The parallel resonance capacitor of 74 pF is integrated into the chip.
