RFID pcb tag 4 x 20 mm Mifare Classic ® 1K Ev1
SKU
TR35C08

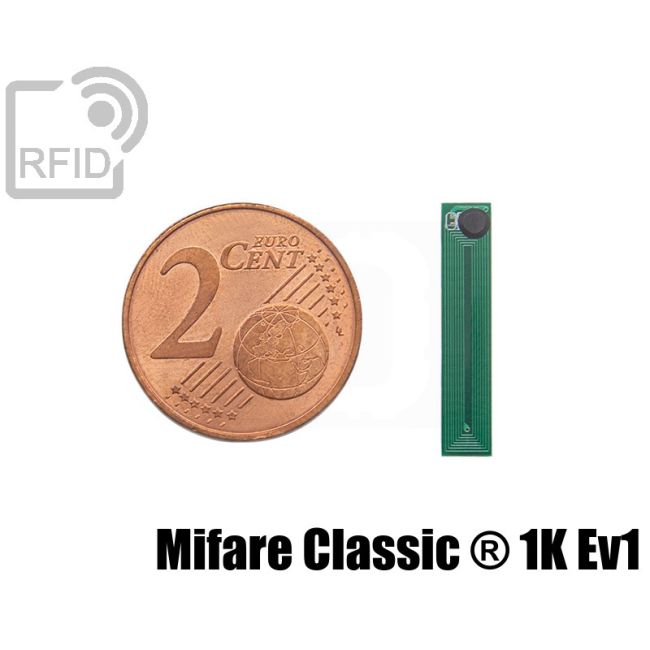

Miniaturized HF RFID tag 20 x 4 mm in PCB for insertion inside objects. Mifare Classic ® 1K Ev1 RFID chip S50 read and write HF 13,56 MHz ISO 14443A.
- 100 pz to € 1.003 each 9% discount
- 200 pz to € 0.932 each 15% discount
- 500 pz to € 0.838 each 24% discount
- 1000 pz to € 0.779 each 29% discount
The RFID pcb tag plate can be applied or inserted into a wide range of materials. Depending on the chip inside and the material on which it is applied, it can be read up to 20 mm away thanks to the extremely small integrated antenna. The main applications concern the possibility of hiding the tag inside the products to avoid counterfeiting via blockchain. To follow the production processes and the distribution chain. Mifare Classic ® 1K Ev1 RFID chip S50 read and write HF 13,56 MHz ISO 14443A memory 1K Bytes / 16 Settori x 4 blocchi x 16 Bytes / 4 Bytes tag ID original NXP.
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
| Chip RFID | MIFARE Classic ® 1K EV1 |
|---|---|
| Chip Frequency | HF 13,56 MHz |
| Standard protocol | ISO 14443A |
| Compatibility NFC | Type MIFARE Tag |
| Chip Manufacturer | NXP |
| Material | PCB |
| Dimension | 20 x 4 x 0,85 mm |
| Weight | 0,1 g |
| Chip functions | NXP Semiconductors has developed the MIFARE Classic EV1 contactless IC to be used in a contactless smart card according to ISO/IEC 14443 Type A. The target applications include single trip or limited use tickets in public transportation networks. The MIFARE Classic with 1kBit memory, organized in 64 block of 16 bytes each |
