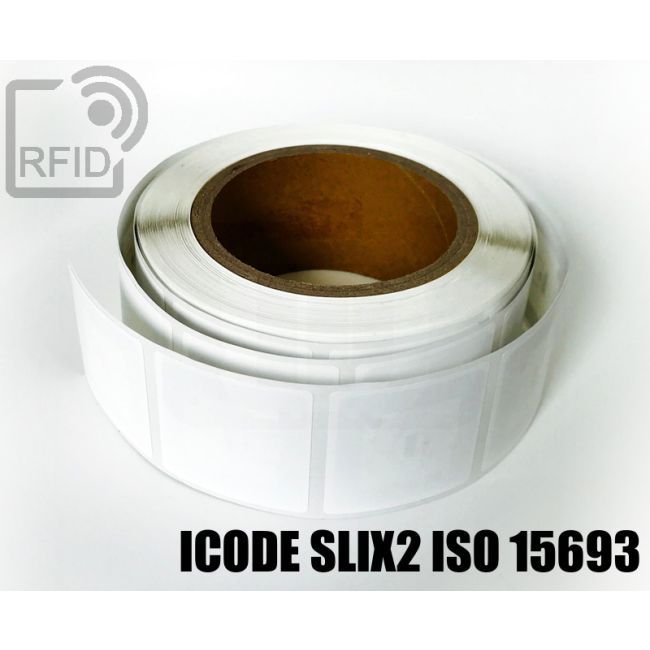

RFID Labels 50 x 50 mm NFC ICode SLIX2 iso 15693

SKU

ET03C85

Adhesive square RFID tag sticker labels 50 x 50 mm in /PET paper customizable with color pre-printing, numbering and barcodes QR Code NFC ICode SLIX2 iso 15693 RFID chip read and write HF 13,56 MHz ISO 15693 / ISO 18000-3.

500 pz to € 0.300 each 10% discount
1000 pz to € 0.265 each 20% discount
2000 pz to € 0.237 each 29% discount
3000 pz to € 0.219 each 34% discount

Details

Square adhesive RFID label for object identification. Fully customizable front and back with offset printing also on the adhesive side, numbers and barcodes. Use in industrial environment, in logistics systems. Application in vehicular access and in reserved parking spaces where the label can be applied on the dashboard or glass windscreen of both cars, trucks and vans. Diagonal cuts prevent the sticker from being moved from one vehicle to another without the tag being damaged. NFC ICode SLIX2 iso 15693 RFID chip read and write HF 13,56 MHz ISO 15693 / ISO 18000-3 memory 2560 bits / 320 bytes = 80 blocchi x 4 bytes / 8 bytes tag ID original NXP.

APPLICATIONS
- Item identification
- Identification of operations
- Factory automation
- Anti-falsification of products
- Safety systems
- RFID stickers

More Information

More Information
Chip RFID	ICODE SLIX2 ISO 15693
Chip Frequency	HF 13,56 MHz
Standard protocol	ISO 15693 / ISO 18000-3
Compatibility NFC	Type 5 Tag
Chip Manufacturer	NXP
Material	Paper/PET/PVC
Dimension	50 x 50 mm
Weight	0,65 g
Chip functions	The ICODE SLIX2 is the successor of ICODE SLIX, fully backwards compatible, that offers improved user memory size and performance such as increased reading range and flexible user memory segmentation with separate access conditions. ICODE SLIX 2 can be operated without line of sight up to a distance of 1.5 m (gate width). No battery is needed. When the smart label is positioned in the field of an interrogator antenna, the high speed RF communication interface enables data to be transmitted up to 53 kbit/s. An intelligent anticollision function enables several tags to operate in the field simultaneously. The anticollision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without data corruption resulting from other tags in the field. ICODE SLIX2 offers 2560-bit of user memory, organized in 80 blocks with 4 bytes each (last block reserved for counter feature) with 50 years data retention and a write endurance of 100.000 cycles. Every device also has a 8-byte Unique identifier, a lock mechanism for each user memory block (write protection) and passwords to access memory management features such as read access, write access and Privacy Mode.
