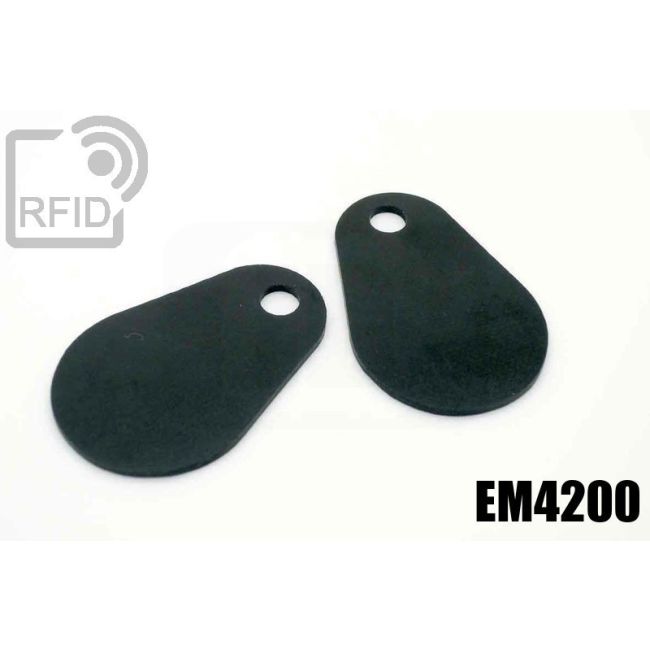

RFID glass fiber tag EM4200
SKU
TR05C02
High temperature resistant nylon fiber oval RFID tag EM4200 RFID chip read only LF 125 KHz.
- 500 pz to € 1.691 each 3% discount
- 1000 pz to € 1.522 each 13% discount
- 2000 pz to € 1.374 each 21% discount
The RFID tag is made of high temperature and solvent resistant material and can be applied by cord or clamp. Particularly suitable for identifying garments, products and components in production and logistics environments. It also allows the protection of the brand and the limitation of counterfeiting in branded products and original spare parts. EM4200 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- Public transport tickets
- Clothing identification labels
- Loyalty cards/ Fidality Card
- Attendance
- Safety systems
- Access control
- Vending systems
APPLICATIONS
- Public transport tickets
- Clothing identification labels
- Loyalty cards/ Fidality Card
- Attendance
- Safety systems
- Access control
- Vending systems
| Chip RFID | EM4200 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | Fiberglass |
| Dimension | 45 x 30 x 1,5 mm |
| Weight | 3,5 g |
| Chip functions | EM4200 is a CMOS integrated circuit used to construct read-only RF transponders. It was designed to directly replace all the previous Read Only chips EM4100/4102 and EM4005/4105 produced by EM Microelectronic-Marin. Compared to EM4100/4102 and EM4005/4105, the chip provides higher read range performance and features a 250pF resonant capacitor on the antenna terminals (selectable through configuration options). The unique 128-bit code is laser-programmed into ROM during manufacturing. During reading, it is possible to choose whether to use the factory-programmed unique code from ROM with 64, 96, or 128 bits. The circuit is powered by the same electromagnetic field used for data transmission. Through modulation on the 125 KHz carrier frequency, the chip will transmit the factory-programmed unique code present in ROM. |
