RFID disks 30mm ABS screw/adhesive EM4200
SKU
TR06C02

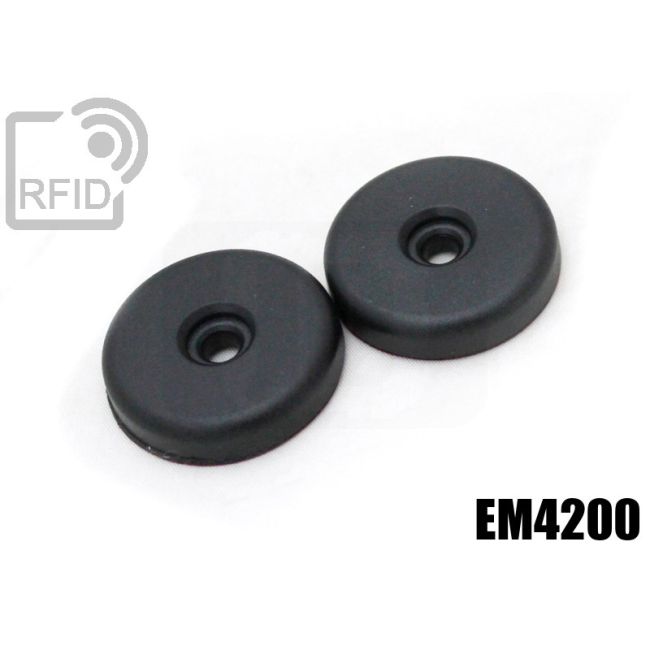

30mm RFID ABS disc with adhesive and hole for screw attachment EM4200 RFID chip read only LF 125 KHz.
- 500 pz to € 0.940 each 4% discount
- 1000 pz to € 0.846 each 14% discount
- 2000 pz to € 0.764 each 22% discount
The RFID Tag disc can be applied via adhesive sticker to any type of dry surface or fixed with screw through central hole. Particularly suitable for identifying machinery, environments and locations in production and safety systems. EM4200 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- Machinery identification
- Round control points in safety systems
- Identification of sites and sites in mobile workers
APPLICATIONS
- Machinery identification
- Round control points in safety systems
- Identification of sites and sites in mobile workers
| Chip RFID | EM4200 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | ABS |
| Dimension | Diameter 30 x 6 mm |
| Weight | 7 g |
| Chip functions | EM4200 is a CMOS integrated circuit used to construct read-only RF transponders. It was designed to directly replace all the previous Read Only chips EM4100/4102 and EM4005/4105 produced by EM Microelectronic-Marin. Compared to EM4100/4102 and EM4005/4105, the chip provides higher read range performance and features a 250pF resonant capacitor on the antenna terminals (selectable through configuration options). The unique 128-bit code is laser-programmed into ROM during manufacturing. During reading, it is possible to choose whether to use the factory-programmed unique code from ROM with 64, 96, or 128 bits. The circuit is powered by the same electromagnetic field used for data transmission. Through modulation on the 125 KHz carrier frequency, the chip will transmit the factory-programmed unique code present in ROM. |
