RFID disks 30mm ABS screw/adhesive EM4100
SKU
TR06C16

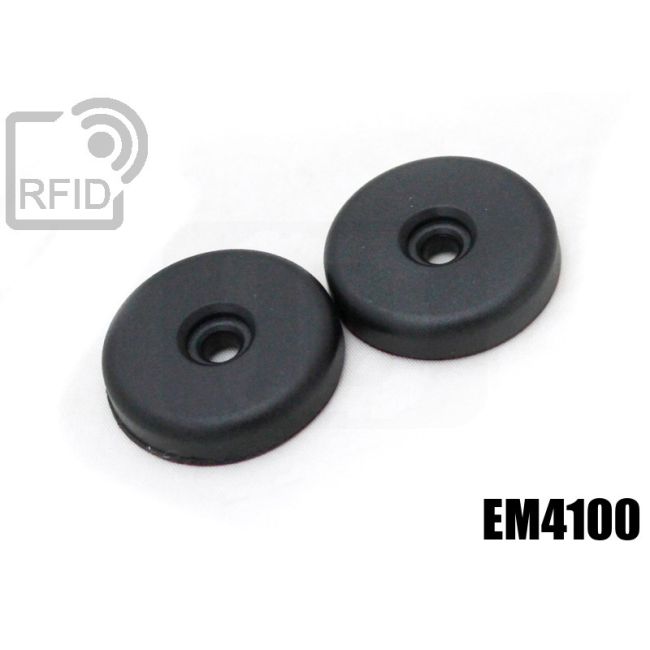

30mm RFID ABS disc with adhesive and hole for screw attachment EM4100 RFID chip read only LF 125 KHz.
- 500 pz to € 0.940 each 4% discount
- 1000 pz to € 0.846 each 14% discount
- 2000 pz to € 0.764 each 22% discount
The RFID Tag disc can be applied via adhesive sticker to any type of dry surface or fixed with screw through central hole. Particularly suitable for identifying machinery, environments and locations in production and safety systems. EM4100 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- Machinery identification
- Round control points in safety systems
- Identification of sites and sites in mobile workers
APPLICATIONS
- Machinery identification
- Round control points in safety systems
- Identification of sites and sites in mobile workers
| Chip RFID | EM4100 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | ABS |
| Dimension | Diameter 30 x 6 mm |
| Weight | 7 g |
| Chip functions | The EM4100 (previously named H4100) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor y preprogrammed memory array. The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip. The EM4100 has several metal options which are used to define the code type and data rate. Data rates of 64, 32 and 16 periods of carrier frequency per data bit are available. Data can be coded as Manchester, Biphase or PSK. Due to low power consumption of the logic core, no supply buffer capacitor is required. Only an external coil is needed to obtain the chip function. A parallel resonance capacitor of 74 pF is also integrated. |
