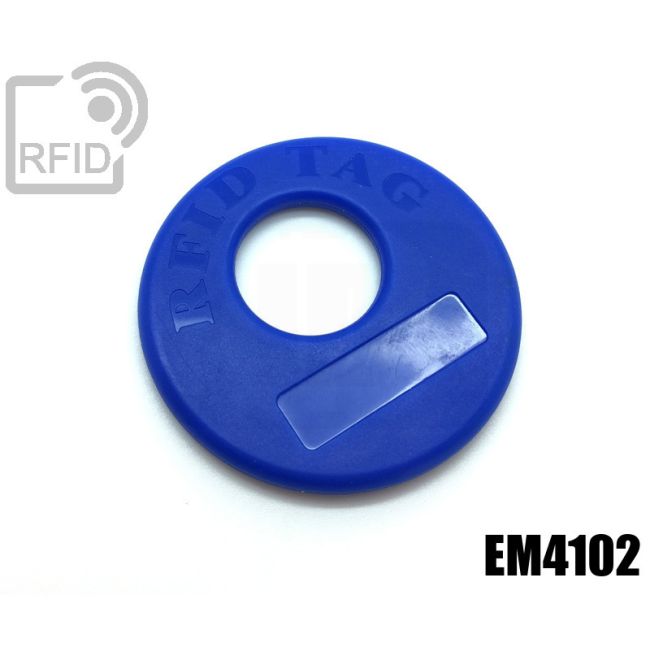

RFID disc hanging products EM4102

SKU

TR14C17

Add to Wish List Add to Compare

Plastic RFID perforated disc for hanging products EM4102 RFID chip read only LF 125 KHz.

500 pz to € 1.442 each 3% discount
1000 pz to € 1.298 each 13% discount
2000 pz to € 1.172 each 21% discount

Details

The RFID perforated disc is made of customizable plastic and can be applied through the product to be identified using the appropriate hole. Particularly suitable for identifying products and hanging garments. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance

More Information

More Information
Chip RFID	EM4102
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	Plastic
Dimension	D. 50 x 4 mm – D. Int. 20 mm
Weight	5,75 g
Chip functions	EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated.
