RFID disc hanging products EM4100

SKU

TR14C16

Add to Wish List Add to Compare

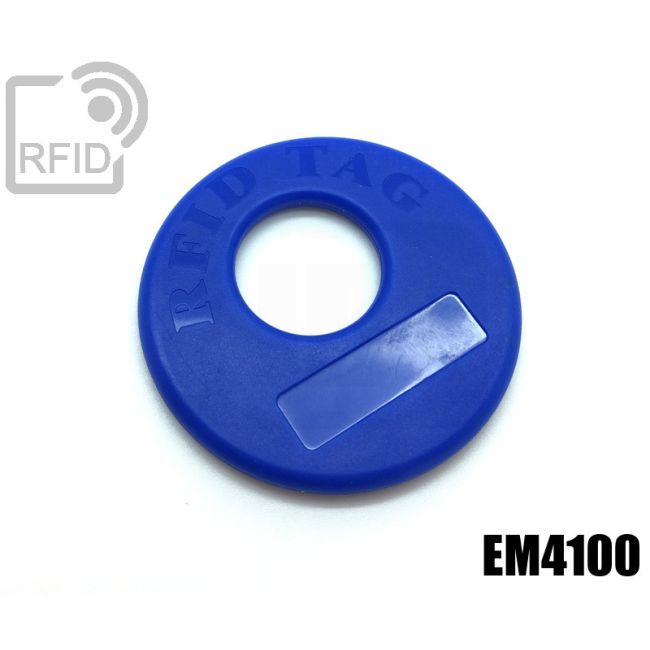

Plastic RFID perforated disc for hanging products EM4100 RFID chip read only LF 125 KHz.

500 pz to € 1.442 each 3% discount
1000 pz to € 1.298 each 13% discount
2000 pz to € 1.172 each 21% discount

Details

The RFID perforated disc is made of customizable plastic and can be applied through the product to be identified using the appropriate hole. Particularly suitable for identifying products and hanging garments. EM4100 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance

More Information

More Information
Chip RFID	EM4100
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	Plastic
Dimension	D. 50 x 4 mm – D. Int. 20 mm
Weight	5,75 g
Chip functions	The EM4100 (previously named H4100) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor y preprogrammed memory array. The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip. The EM4100 has several metal options which are used to define the code type and data rate. Data rates of 64, 32 and 16 periods of carrier frequency per data bit are available. Data can be coded as Manchester, Biphase or PSK. Due to low power consumption of the logic core, no supply buffer capacitor is required. Only an external coil is needed to obtain the chip function. A parallel resonance capacitor of 74 pF is also integrated.
