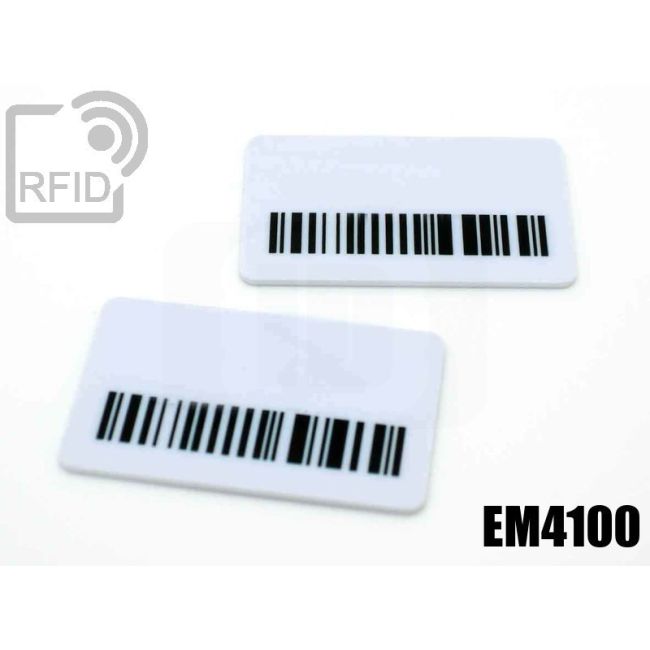

Rectangular RFID tags EM4100
SKU
TR04C16
PVC RFID tag EM4100 RFID chip read only LF 125 KHz.
- 500 pz to € 0.693 each 4% discount
- 1000 pz to € 0.623 each 14% discount
- 2000 pz to € 0.563 each 22% discount
The RFID tag tag is made of printable and customizable reinforced PVC and can be glued or inserted into special pockets and housings. Particularly suitable for identifying batches, products and components in production and logistics environments. It also allows the protection of the brand and the limitation of counterfeiting in branded products and original spare parts. EM4100 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- Public transport tickets
- Clothing identification labels
- Loyalty cards/ Fidality Card
- Attendance
- Safety systems
- Access control
- Vending systems
APPLICATIONS
- Public transport tickets
- Clothing identification labels
- Loyalty cards/ Fidality Card
- Attendance
- Safety systems
- Access control
- Vending systems
| Chip RFID | EM4100 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | PVC |
| Dimension | 45 x 25 x 0,9 mm |
| Weight | 2,5 g |
| Chip functions | The EM4100 (previously named H4100) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor y preprogrammed memory array. The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip. The EM4100 has several metal options which are used to define the code type and data rate. Data rates of 64, 32 and 16 periods of carrier frequency per data bit are available. Data can be coded as Manchester, Biphase or PSK. Due to low power consumption of the logic core, no supply buffer capacitor is required. Only an external coil is needed to obtain the chip function. A parallel resonance capacitor of 74 pF is also integrated. |
