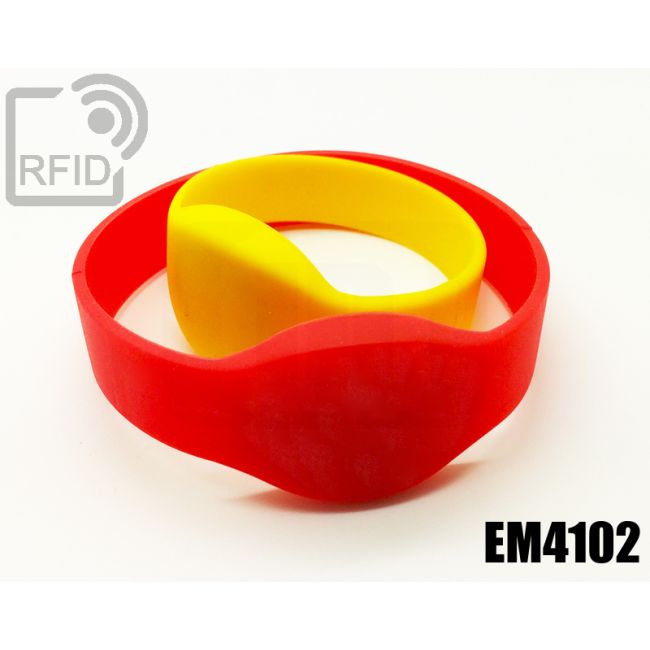

Oval silicone RFID wristbands EM4102

SKU
BR05C17
RFID Silicone Wristband with Oval Dial EM4102 RFID chip read only LF 125 KHz.

  Customization instructions

  • 200 pz to € 0.832 each 6% discount
  • 500 pz to € 0.764 each 13% discount
  • 1000 pz to € 0.676 each 23% discount
  • 2000 pz to € 0.597 each 32% discount
Hypoallergenic and completely waterproof IP68 silicone wristband. Available in different diameter sizes and many colors also pantone and customizable by screen printing and engraving. Particularly suitable for environments where the body is in contact with water such as marine environments, swimming pools, water parks and spas. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Personal identification
- Electronic money
- Holiday parks
- Campsites
- Access control
- Vending
- Events and fairs
- Sporting events
More Information
Chip RFID EM4102
Chip Frequency LF 125 KHz
Compatibility NFC NO
Chip Manufacturer EM Microelectronic
Material Silicone
Dimension 100 x 30 x 7 mm
Weight 12,5 g
Chip functions EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated.
