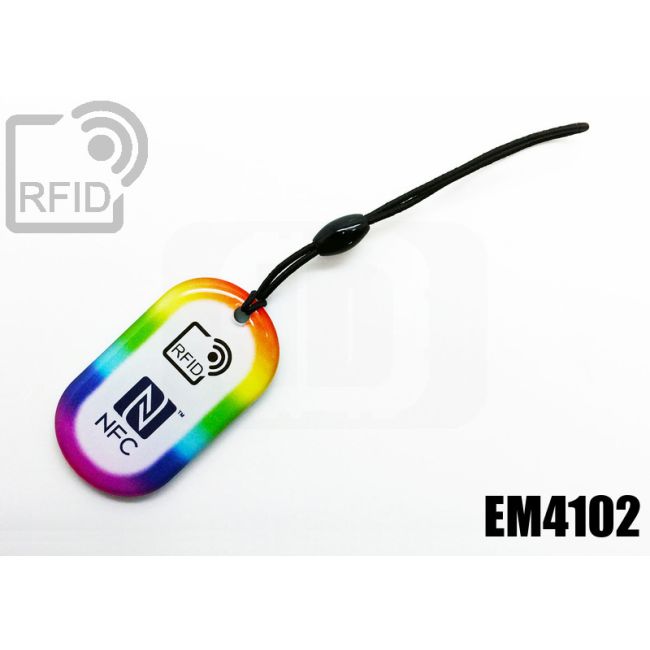

Oval RFID keyfob EM4102
SKU
KY04C17
1.5mm Thickness White PVC Rectangular Shape RFID Key Ring EM4102 RFID chip read only LF 125 KHz.
- 500 pz to € 0.526 each 10% discount
- 1000 pz to € 0.489 each 17% discount
- 2000 pz to € 0.432 each 26% discount
Rectangular rigid keyfob can be used as a keychain and object identification. Fully customizable front and back with offset printing, numbering and barcodes. Glass effect finish with extremely elegant epoxy resin. Particularly suitable for identifying clothing, clothing and goods storage. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- Personal identification
- Electronic money
- Holiday parks
- Campsites
- Access control
- Vending
- Energy saving switches
APPLICATIONS
- Personal identification
- Electronic money
- Holiday parks
- Campsites
- Access control
- Vending
- Energy saving switches
| Chip RFID | EM4102 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | PVC |
| Dimension | 25 x 45 x 2 mm |
| Weight | 5,5 g |
| Chip functions | EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated. |
