Miniaturized RFID tag ICode SLIX iso 15693
SKU
TR12C53

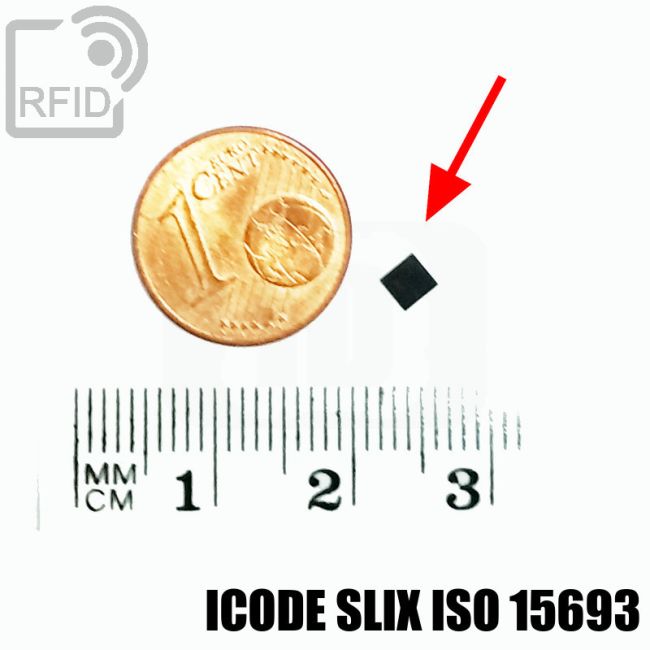

HF RFID tag one of the smallest tags in the world, for insertion on or into small objects where small size is critical. ICode SLIX iso 15693 RFID chip read and write HF 13,56 MHz ISO 15693 ISO 18000.
- 100 pz to € 0.997 each 16% discount
- 200 pz to € 0.895 each 25% discount
- 500 pz to € 0.831 each 30% discount
- 1000 pz to € 0.767 each 36% discount
The RFID tag plate is made of very hard resin and can be applied through adhesive or inserted into a wide range of materials. With operating temperature from -40 C up to 85 C is moisture resistant and depending on the internal chip and contact material, it can be read up to 15mm away thanks to the extremely small integrated antenna. The main applications concern the possibility of hiding the tag inside the products to avoid counterfeiting or to follow the production processes. ICode SLIX iso 15693 RFID chip read and write HF 13,56 MHz ISO 15693 ISO 18000 memory 1024 Bits / 32 blocchi x 4 Bytes / 8 Bytes tag ID original NXP.
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
| Chip RFID | ICODE SLIX ISO 15693 |
|---|---|
| Chip Frequency | HF 13,56 MHz |
| Standard protocol | ISO 15693 ISO 18000 |
| Compatibility NFC | Type ICODE Tag |
| Chip Manufacturer | NXP |
| Material | Resin |
| Dimension | 3,3 x 3,3 x 0,7 mm |
| Weight | 0,1 g |
| Chip functions | The ICODE SLIX IC is a dedicated chip for intelligent label applications such as libraries, product authentication in different industries such as pharmaceutical, medical devices and alcohol, as well as production management in different areas of the industry. The chip operates at 13.56 Mhz and has a 1024 bits memory organized in 32 blocks of 4 bytes each |
