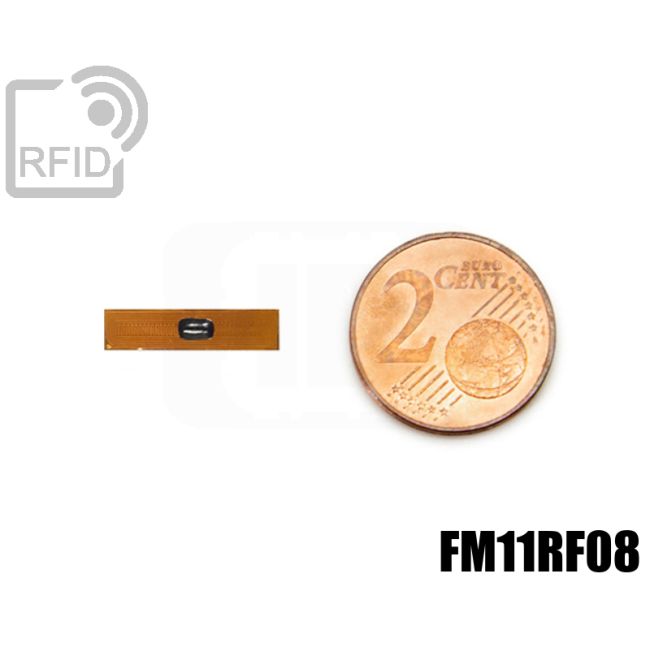

Mini RFID film tag 4 x 17 mm FM11RF08
SKU
TR37C07
Mini RFID HF adhesive tag in reduced film 4 x 17 mm for application even inside small objects FM11RF08 RFID NFC chip read and write HF 13,56 MHz ISO 14443A.
- 100 pz to € 0.552 each 10% discount
- 200 pz to € 0.513 each 16% discount
- 500 pz to € 0.461 each 25% discount
- 1000 pz to € 0.428 each 30% discount
The flexible film RFID tag plate can be applied via adhesive or inserted into a wide range of materials. Depending on the chip inside and the material on which it is applied, it can be read up to 15 mm away thanks to the extremely small integrated antenna. The main applications concern the possibility of hiding the tag inside the products to avoid counterfeiting via blockchain. To follow the production processes and the distribution chain. FM11RF08 RFID NFC chip read and write HF 13,56 MHz ISO 14443A memory 1K Bytes / 16 Settori x 4 blocchi x 16 Bytes / 4 Bytes tag ID original Fudan.
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
| Chip RFID | FM11RF08 |
|---|---|
| Chip Frequency | HF 13,56 MHz |
| Standard protocol | ISO 14443A |
| Compatibility NFC | Type MIFARE Tag |
| Chip Manufacturer | Fudan |
| Material | FPC |
| Dimension | 17 x 4 x 0,7 mm |
| Weight | 0,2 g |
| Chip functions | FM11RF08 is the contactless card IC according to ISO14443 Type A. The Contactless smart card contains three components: FM11RF08 chip antenna and the card base with PVC (or PET) material. The high speed RF communication interface allows transmitting data with 106 Kbit/s |
