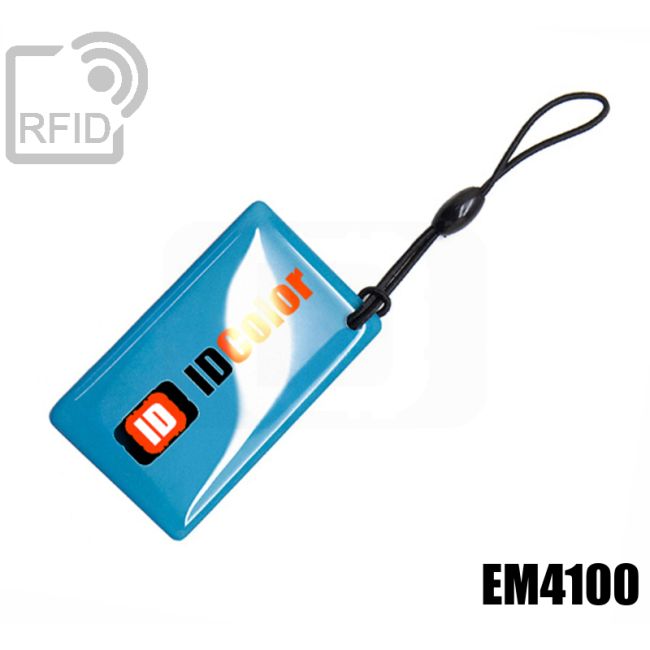

Large RFID keyfob EM4100
SKU
KY10C16
PVC wide rectangular RFID keyfob also available with offset printing and transparent resin EM4100 RFID chip read only LF 125 KHz.
- 500 pz to € 0.594 each 11% discount
- 1000 pz to € 0.552 each 17% discount
- 2000 pz to € 0.488 each 27% discount
Large RFID keyfob EM4100
| Chip RFID | EM4100 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | PVC |
| Dimension | 30 x 50 x 1-4 mm |
| Weight | 7,5 g |
| Chip functions | The EM4100 (previously named H4100) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor y preprogrammed memory array. The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip. The EM4100 has several metal options which are used to define the code type and data rate. Data rates of 64, 32 and 16 periods of carrier frequency per data bit are available. Data can be coded as Manchester, Biphase or PSK. Due to low power consumption of the logic core, no supply buffer capacitor is required. Only an external coil is needed to obtain the chip function. A parallel resonance capacitor of 74 pF is also integrated. |
