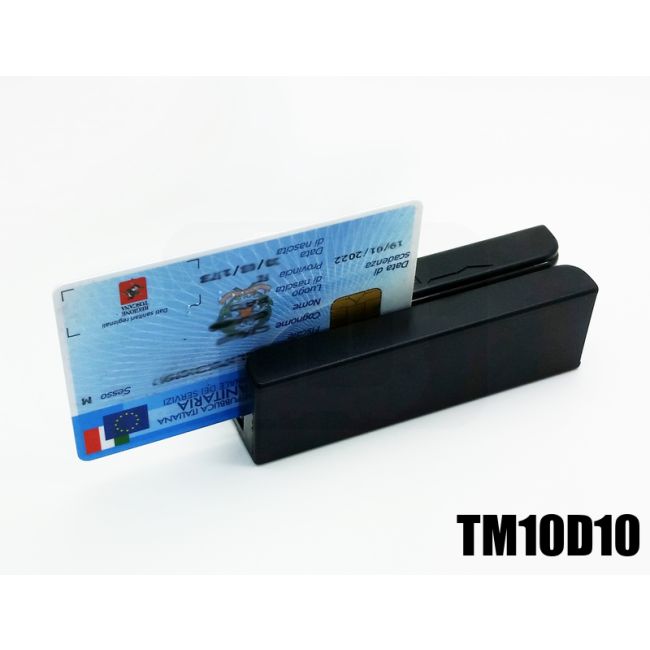

Health Card magnetic stripe reader tracks 1 2 3 USB
SKU
TM10D10
Programmable bidirectional card and badge reader with magnetic stripe or track compatible with Italian health card tracks 1, 2 and 3. USB connection with keyboard emulation..
- 2 pz to € 23.940 each 20% discount
- 5 pz to € 22.440 each 25% discount
- 10 pz to € 20.950 each 30% discount
TECHNICAL ASPECTS
- track reader 1(210 bpi) 2(75/210bpi) 3(210 bpi)
- low coercivity LoCo and high energy HiCo (ISO 7811)
- reading ISO, AAMVA, CADMV, JIS-II, IBM formats
- card thickness 0.38 - 1.20mm (ISO 7810 format)
- reading speed 3-60 ips
- operating temperature -20°C +60°C 90% humidity
- dimensions 90 x 27 x 29 mm
FUNCTIONS
- reading of all the data present on the magnetic stripe of the Italian health card
- magnetic track reader track 1 2 3 with single pass
- bidirectional reading
- keyboard emulation interface
- programming via software tool of tracks / formats / prefixes / suffixes
CONNECTIONS
- USB HID compatible ( Windows, Android, Linux)
APPLICATION
- access to healthcare services
- customer card service
- loyalty card reading
- access control badge reading
- attendance detection badge reading.
- track reader 1(210 bpi) 2(75/210bpi) 3(210 bpi)
- low coercivity LoCo and high energy HiCo (ISO 7811)
- reading ISO, AAMVA, CADMV, JIS-II, IBM formats
- card thickness 0.38 - 1.20mm (ISO 7810 format)
- reading speed 3-60 ips
- operating temperature -20°C +60°C 90% humidity
- dimensions 90 x 27 x 29 mm
FUNCTIONS
- reading of all the data present on the magnetic stripe of the Italian health card
- magnetic track reader track 1 2 3 with single pass
- bidirectional reading
- keyboard emulation interface
- programming via software tool of tracks / formats / prefixes / suffixes
CONNECTIONS
- USB HID compatible ( Windows, Android, Linux)
APPLICATION
- access to healthcare services
- customer card service
- loyalty card reading
- access control badge reading
- attendance detection badge reading.
| Dimension | 90 x 27 x 28 mm |
|---|---|
| Material | ABS 94V-0 |
| Weight | 80 g |
| Technology | BM |
