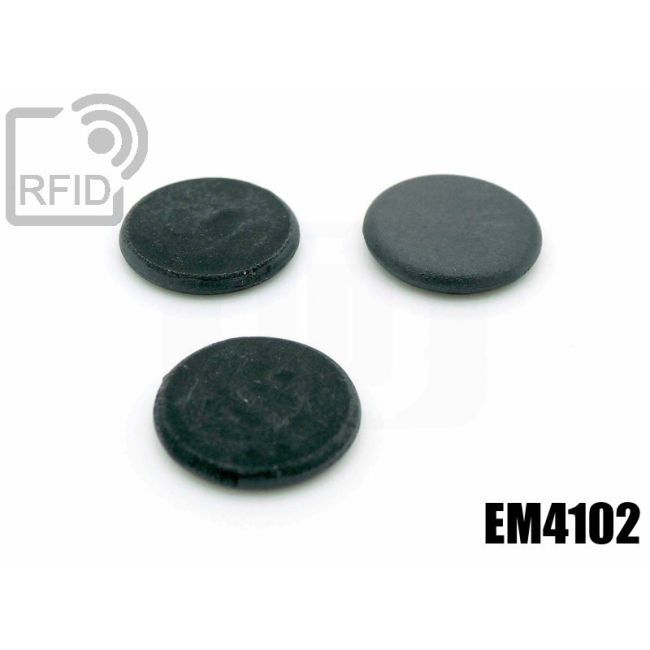

Glass fiber RFID discs EM4102

SKU

TR03C17

Add to Wish List Add to Compare

High temperature resistant fiberglass RFID disc EM4102 RFID chip read only LF 125 KHz.

200 pz to € 0.868 each 5% discount
500 pz to € 0.780 each 15% discount
1000 pz to € 0.702 each 23% discount
2000 pz to € 0.634 each 31% discount

Details

The RFID Tag disc is made of high temperature and solvent resistant material and can be glued or inserted into special pockets and housings. Particularly suitable for identifying batches, products and components in production and logistics environments. It also allows the protection of the brand and the limitation of counterfeiting in branded products and original spare parts. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Item identification
- Machine identification
- Factory automation
- Anti-falsification of products
- Safety systems
- RFID stickers

More Information

More Information
Chip RFID	EM4102
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	Polyphenylensulfide
Weight	2,5 g
Chip functions	EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated.
