Film RFID tag 12 x 18 mm FM11RF08
SKU
TR26C07

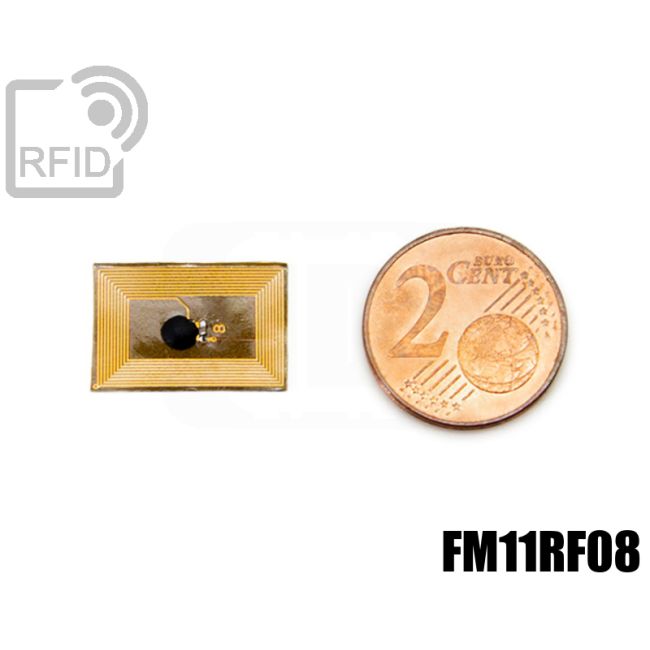

Miniaturized HF RFID tag on 18 x 12 mm film for application even over metal objects with good reading distance. FM11RF08 RFID NFC chip read and write HF 13,56 MHz ISO 14443A.
- 100 pz to € 0.590 each 10% discount
- 200 pz to € 0.549 each 16% discount
- 500 pz to € 0.493 each 25% discount
- 1000 pz to € 0.459 each 30% discount
The RFID tag plate in flexible film can be applied with adhesive or inserted in a wide range of materials. Depending on the chip inside and the material on which it is applied, it can be read up to 25 mm away thanks to the integrated antenna extremely reduced. The main applications concern the possibility of hiding the tag inside the products to avoid counterfeiting through blockchain . To follow the production processes and the distribution chain. FM11RF08 RFID NFC chip read and write HF 13,56 MHz ISO 14443A memory 1K Bytes / 16 Settori x 4 blocchi x 16 Bytes / 4 Bytes tag ID original Fudan.
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
APPLICATIONS
- Product identification
- Factory automation
- Anti-falsification of products
- Anti-counterfeiting of brands
- Warranty and maintenance
| Chip RFID | FM11RF08 |
|---|---|
| Chip Frequency | HF 13,56 MHz |
| Standard protocol | ISO 14443A |
| Compatibility NFC | Type MIFARE Tag |
| Chip Manufacturer | Fudan |
| Material | FPC |
| Dimension | 18 x 12 x 0,7 mm |
| Weight | 0,3 g |
| Chip functions | FM11RF08 is the contactless card IC according to ISO14443 Type A. The Contactless smart card contains three components: FM11RF08 chip antenna and the card base with PVC (or PET) material. The high speed RF communication interface allows transmitting data with 106 Kbit/s |
