Fast Android QR scanner + cutter printer"

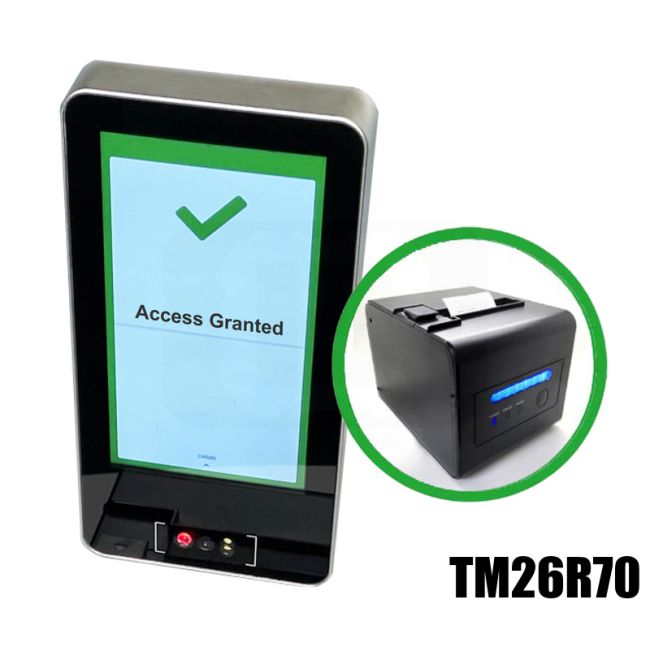

High-speed desktop QR code reader with printer with automatic receipt cutting. The QR CODE can be shown directly by the user: both from the screen of their smartphone and by printing on paper thanks to the LED lighting of the reading area. The high-speed hardware scanner quickly detects the QR CODE in the sensor area without the need to search for perfect framing as happens in systems with fixed lens cameras. Issuance of the printed receipt proving the verification. Recommended for checking large numbers of people due to the high reading speed and simple detachment of the receipt.

TECHNICAL ASPECTS READER
- QR CODE reading speed with high speed hardware scanner 0.5 seconds both from smartphone and paper
- LED lighting reading area
- luminous/acoustic signaling valid/invalid code with high intensity speaker
- power supply 9VDC - 2.5 A (included)
- aluminum container for indoor use and stainless steel bracket for wall installation
- Quad-Core 1.1GHz processor, 1GB DDR, 8GB eMMC, Android operating system
- display: 5 inches, 1280 x 720
- CE RoHs
certifications - assistance and repairs at our company. laboratory in Italy
- Ethernet RJ45
- WiFi
- 2 USB ports
- Contact closure relay (1-99 sec.) in case of valid / invalid verification

TECHNICAL ASPECTS PRINTER
- thermal printer for high speed commands 300 mm/sec
- partial cutter
- thermal paper with roll 58/80 mm max diameter 80 mm
- protection against splashes and dust and alarm for uncollected receipt
- RS232 / USB / LAN connection

APPLICATION
- Verification of QR codes for self-service catering/hospitality
- Management of local access QR codes of entertainment and events
- Control of public QR codes in offices
- Access control with QR code of private and public companies.
