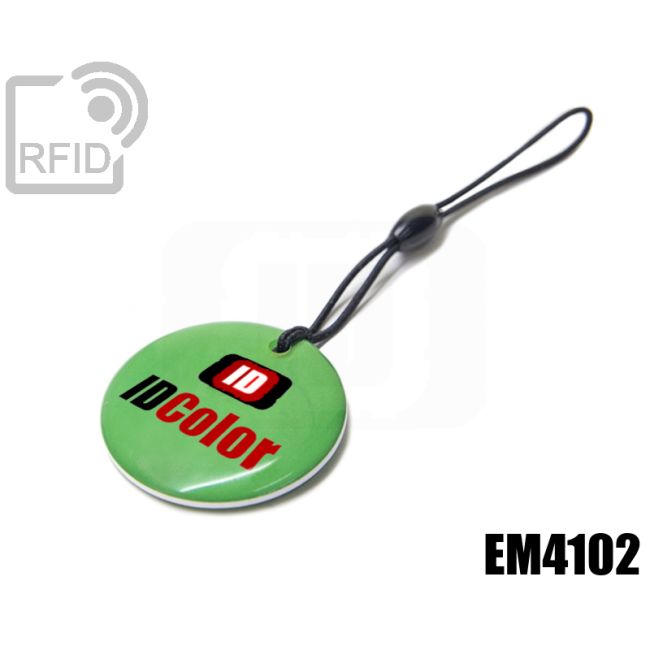

Circular RFID tag keyfob EM4102
SKU
KY12C17
- 500 pz to € 0.536 each 10% discount
- 1000 pz to € 0.498 each 17% discount
- 2000 pz to € 0.440 each 26% discount
Circular RFID tag keyfob EM4102
| Chip RFID | EM4102 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | PVC |
| Dimension | diam. 32 x 1-4 mm |
| Weight | 5 g |
| Chip functions | EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated. |
