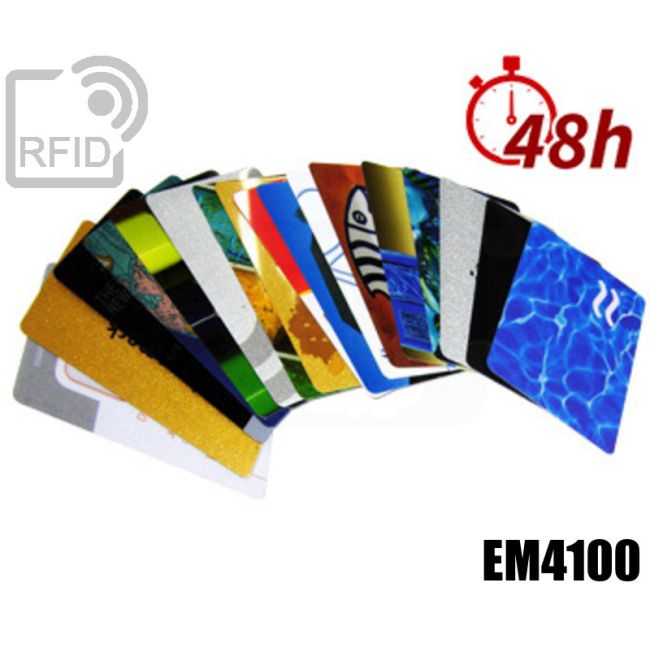

48H printing RFID cards EM4100

SKU

CR03C16

Custom RFID cards. Badge and proximity identification cards with fast printing. Urgent service of fast color printing in retransfer and thermography with numbering and barcodes. ISO 7810 laminated plastic cards in PVC or PET. EM4100 RFID chip read only LF 125 KHz.

Customization instructions

100 pz to € 0.933 each 7% discount
150 pz to € 0.847 each 15% discount
200 pz to € 0.783 each 22% discount

Details

RFID cards printed and shipped in just 48 hours from the confirmation of the draft. Color retransfer printing with custom design on PVC ISO 7810 ID-1 standard size with size of 85.60 53.98 mm (3.370 2.125 in) and rounded corners with radius of 2.88-3.48 mm. Originally used for bank cards today it is also used in many countries for driving licenses and identity cards and in many commercial sectors for loyalty cards, identification and business cards. EM4100 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Personal identification
- Fidelity card / Loyalty cards
- Gift cards
- Electronic money
- Holiday parks
- Camping / Campsites
- Access control
- Attendance
- Holtel and hotel doors
- Energy saving switches

More Information

More Information
Chip RFID	EM4100
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	PVC
Dimension	85,60 × 54 × 0,9 mm
Weight	6,9 g
Chip functions	The EM4100 (previously named H4100) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor y preprogrammed memory array. The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip. The EM4100 has several metal options which are used to define the code type and data rate. Data rates of 64, 32 and 16 periods of carrier frequency per data bit are available. Data can be coded as Manchester, Biphase or PSK. Due to low power consumption of the logic core, no supply buffer capacitor is required. Only an external coil is needed to obtain the chip function. A parallel resonance capacitor of 74 pF is also integrated.
