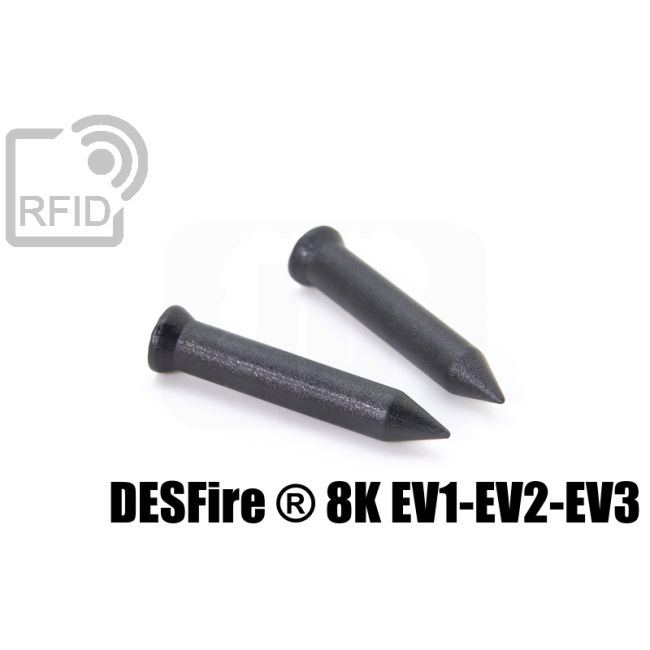

36mm RFID tag nails NFC Desfire ® 8K EV1-EV2-EV3
SKU
TR07C50
Nylon 36mm RFID tag nail for tree and timber identification NFC Desfire ® 8K EV1-EV2-EV3 D81 D82 D83 RFID chip read and write HF 13,56 MHz ISO 14443A.
- 500 pz to € 3.522 each 2% discount
- 1000 pz to € 3.170 each 12% discount
- 2000 pz to € 2.861 each 20% discount
The RFID tag tube is made of nylon and can be inserted into any hole on wood, plastic and masonry.
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. NFC Desfire ® 8K EV1-EV2-EV3 D81 D82 D83 RFID chip read and write HF 13,56 MHz ISO 14443A memory 8Kbyte 7 bytes tag ID flexible file system original NXP.
APPLICATIONS
- Identification of trees and timber
- Tracking of pallets
- Logistics and inventories
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. NFC Desfire ® 8K EV1-EV2-EV3 D81 D82 D83 RFID chip read and write HF 13,56 MHz ISO 14443A memory 8Kbyte 7 bytes tag ID flexible file system original NXP.
APPLICATIONS
- Identification of trees and timber
- Tracking of pallets
- Logistics and inventories
| Chip RFID | DESFire ® 8K EV1-EV2-EV3 |
|---|---|
| Chip Frequency | HF 13,56 MHz |
| Standard protocol | ISO 14443A |
| Compatibility NFC | Type 4 Tag |
| Chip Manufacturer | NXP |
| Material | Nylon |
| Dimension | Diameter 6 x 36 mm |
| Weight | 2,5 g |
| Chip functions | MIFARE DESFire EV1 is based on open global standards for both air interface and cryptographic methods. It is compliant to all 4 levels of ISO/IEC 14443A and uses optional ISO/IEC 7816-4 commands. Featuring an on-chip backup management system and the mutual three-pass authentication, a MIFARE DESFire EV1 card can hold up to 28 different applications and 32 files per application. The size of each file is defined at the moment of its creation, making MIFARE DESFire EV1 a truly flexible and convenient product |
